One bad incident happened today. Our web site’s domain name has been taken over by someone else, as I forgot to renew the domain name on time.
Maverick Audio’s official site now has been moved to www.mav-audio.com, please use this new address to visit our site from now on.
If you want to contact us, please click here to submit your message, please do not use any old email address you might have.
Please spread the news to your friend and the community. Thanks everybody for your support.
Finally we have solved the last small issue in the production phase, and we can start to take pre-order right now. Sorry for keep you guys waiting.

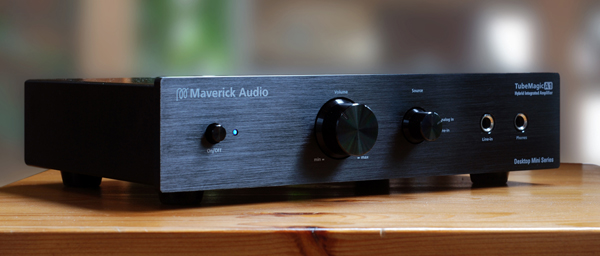

From left to right: main power switch, volume control knob, audio input select knob, line-in socket, headphone amplifier socket

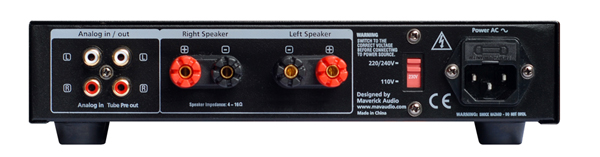

From left to right: analog audio input, tube pre-amp output, right speaker connector, left speaker connector, power voltage switch, power cord socket

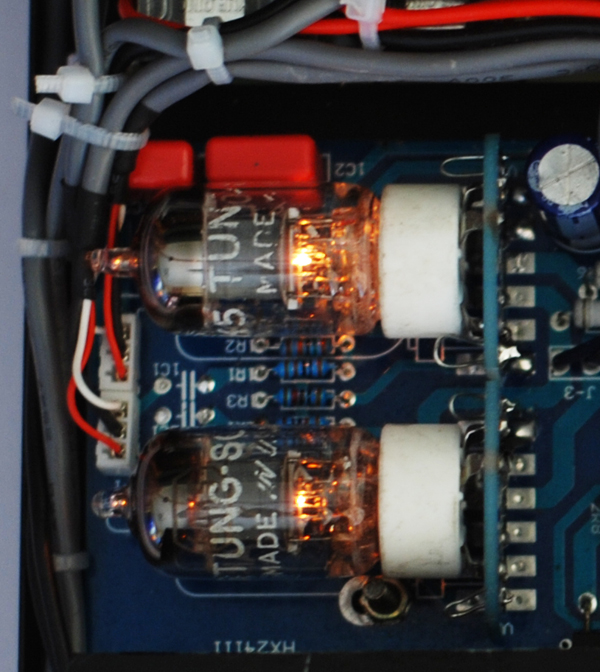

Two matched 1950’s Tung-Sol military grade tube installed in the A1
The amplifier will have approx 30watt per channel power. It can drive most low to medium impedance bookshelf speaker nicely. It is superb for using on your desktop, in a small to medium size listening environment, together with the D1 DAC, you will be surprised how powerful this small mini amplifier is.
We don’t use cheap Class-D chip in this amplifier. It is an “old school” Class A/B integrated amplifier when we use two tubes as preamp stage. It is fast, yet has the distinct smooth/warm tube flavor.

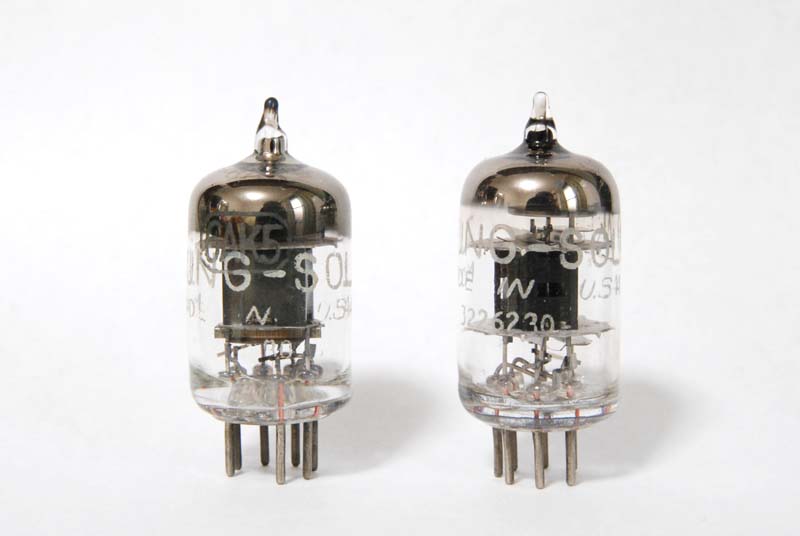

The headphone output is pure tube driven. You will have two choice — a pair of matched Chinese made 6J1 NOS tube or the western equivalent — a pair of matched Military grade 6AK5/5654 tube. We have acquired a large quantity of 1950 era Tung-Sol 6AK5/5654 tube directly from an US military base. Based on my testing, the headphone amp output on this amplifier along, is as good or better than a lot dedicated headphone amp on the market.
What’s Maverick Audio’s next product? I have been asked with this question a lot times. Here I am going to give you guys some “inside” information.
Our next product will be a mini hybrid amplifier.
- It has the same form factor as our D1 DAC.
- Yes it has a pure tube headphone amplifier output stage.
- It is also a power amplifier which has 30 watt x 2 real output power. Which will be enough for a lot high impedance bookshelf speakers.
- Yes it can be used as standalone or with our D1 DAC.
- Like our D1, we use all real audio grade stuff in this mini amplifier, R-core transformer, audio grade capacitor and resistors.
- We will use two Chinese NOS 6J1 tubes as standard configuration. You will have option to upgrade them to NOS 6AK5 tubes made in 1950’s.
When will it get released? Some time next month
We all know how much improvement a good NOS (New Old Stock) tube can bring to the sound quality, therefore, start today, we will have a new model Tube Magic D1 with a brand new GE 5670W military version tube pre-installed. If you plan to use the tube preamp out on the D1, then it is a must-have upgrade.
NOS GE 5670W tube used in Tube Magic D1
Our production of tube magic D1 DAC is reaching the final stage. Starting from next Wednesday ( Nov.25th, 2009), we will start to ship out D1 for pre-order customers. There is only have limited number available next week, therefore, we will ship the DAC in “first come first serve” principle. We will have more units coming after next week and will end the pre-order end of next week. If any one want to try one, please pre-order now!
As you all know, the fun of any tube equipped audio device is the possibility of enhancing sound quality by switching another brand/model vacuum tube. Oh yea, that’s the beauty of “analogue”, nothing is 100% fixed.
Let me put my 2 cents on the available tube replacement candidates for our Tube Magic and Tube Magic D1 DAC.
The DAC uses a Chinese made NOS 6N3 tube, which is a clone for western 5670 tube. There were quite a few factories manufacturing 5670 tubes in the past. Even for the same factory, there have been different versions. For example, GE, Sylvania, Raytheon, WE (Western Electric) they all made 5670 tubes.
It is believed western made 5670 has better sound quality than the Chinese/Russian clones.
For a start, you can try GE and Sylvania JAN (Military) version 5670 tube. They are widely available and reasonable priced. I believe most our customers replacing the stock tube with GE/Sylvania JAN tube. You can expect a certain degree enhancement on sound quality.
GE 5 stars 5670 tube
GE 5670 JAN tube
For better performance, you can try WE396A or Raytheon windmill getter, they are more expensive than above 2 models. The WE396A is probably the best one, but it is also the most expensive tube ( ~ $40 per tube).
Raytheon Windmill Getter 5670 tube
There is also Russian 6N3P-I, a 5670 clone made for Russia military. I’ve never tried this tube and don’t know if it is any better than the Chinese tube used in our DAC. The Chinese tube comes with the DAC was manufactured by Beijing Tube factory in the 70’s for Chinese military.
Squeezebox is probably, the best networked audio player on the market. I fall in love with it instantly — the ease of use, the beautiful VFD screen and elegant designed case, the feeling of all your music in the finger tips. In fact, I haven’t touched my CD collection once since I digitalized them into lossless FLAC format and stored in the squeeze center.
The only complain I have, is the sound quality from the two channel analog outputs in the Squeezebox classic and duet, it left much to be desired.

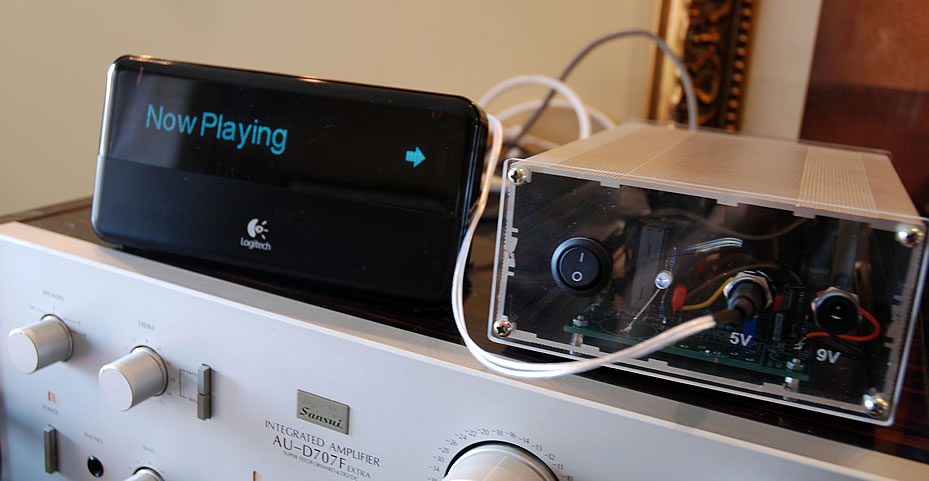

My vintage Sansui AU-D707F stereo amplifier and Squeezbox
My setup is quite simple, a 2 channel stereo amplifier to a pair of 200W louder speakers. The squeezebox is connected via analog connections. Although squeezebox claimed to use high-end 24bit DAC and special designed circuit, the analog outputs still sound relatively weak: it just doesn’t have the clarity and strength as my old sound source, an aged Marantz CD Player. So my pursuit to better sound begins.
My hand made linear power supply
The first thing comes to my mind is the power supply. Squeezebox comes with a cheap, small switching power supply. You know how bad the switching power supply will do to the sound quality, no matter how hard you try to regulate it (as squeezebox claimed), the electrical noise & ripple will still be there. On the contrast, Linear power supply can be up to 10,000 times quieter than switching power supply.

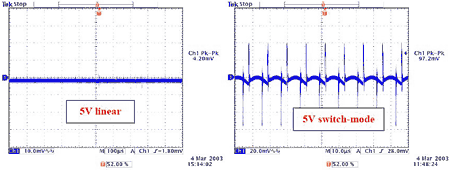

Notice the electrical ripple difference
I ordered a 5V linear power supply and replaced the old cheap switching power supply. It did improve the “strength” of the audio signal, the bass is much more powerful now. However, the sound is still lack of clarify and depth.
Naturally, the next step for me is to utilize the digital audio output on the Squeezebox — I don’t want Squeezebox to handle the “digital to analog converting” job, I want something else. Since most stereo amplifier doesn’t come with digital audio connection, the only possible solution will be a good quality standalone Digital to Analog Converter, in my case, the Maverick Audio Tube Magic Upsampling DAC ( What else can I choose? It’s my company’s own product
). After I hooked the DAC into my setup, I immediately found the clarity of the sound has improved a lot, I can hear a lot more details than before. The overall sound quality is more transparent, natural and with better bass/tremble. It is really close to the sound when I was using my old school CD player, I can hardly to differentiate the difference between my old CD player and FLAC music played from Squeezebox. I can say the result is very pleasant, I can finally let go my old CD player without missing the sound quality.
In this digital age, we know almost every kind music formats come in digital format: CD, MP3, AAC and etc. However, on the contrary, every type music “playback” devices are analog: speakers and headphones. Therefore, no matter how high your digital music file’s Bit-rate is, the audio device will have to convert it to analog audio signal before you can hear it. We call this process “Digital-to-analog Converter”, in short, “DAC”.
But wait; isn’t DAC already included in the audio devices? Why do I need a standalone DAC?
Answer is simple, standalone DAC offers the easiest and probably the cheapest way to upgrade your music listening experience.
CS4382 DAC on Sound Blaster X-Fi Fatal1ty
Why? Because the “build-in” DAC in most audio devices are not good enough. Let’s take computer sound card for an example: the cost of the DAC in 99% sound card is less $1. For $1, how good can the digital to analog conversion be? Not to mention the “noisy” power supply in the computer, the signal interference, the “non-audio grade” components and etc. As the result, the audio output on computer is noisy, lack of clarity and not very transparent.
Same thing happened to most of other audio devices: DVD player, Blu-ray player, network media player and laptops.
We are all too focused on the “digital” specifications, and forgot the “digital-to-analog converting” part is as important as the digital part, and the DAC is the key element to the sound quality. A properly designed external DAC will greatly enhance your music listening experience, it is not an assumption, it is a fact.
