Hardware

What’s included:

  • Maverick Audio Tube Magic DAC
  • User’s quick start guide
  • Line-in cord for most iPod and other MP3 players with standard 3.5 mm jack
  • USB cable
  • 1/8″ (3.5mm) to 1/4″ (6.5mm) gold plated headphone jack converter
  • AC Power Cord

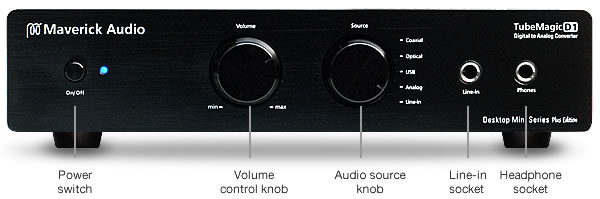

Maverick Audio TubeMagic D1 Plus front panel
Back panel detail

Audio inputs

  • Optical audio input x 1 (Digital)
  • Coaxial audio input x 1 (Digital)
  • USB connector x 1 (Digital)
  • Analog audio input x 1 (Analog)
  • Line-in audio input x 1 (Analog)
  • Optical connector: TOSLINK 660nm
  • Coax connector: RCA, 500mVpp into 75 ohms
  • Analog connector: RCA, 1000k ohms
  • Accepted sample rates for coaxial and optical connections: 32khz, 44.1Khz, 48Khz, 88.2Khz, 96Khz, 192Khz
  • Accepted sample rates for USB connection: 32khz, 44.1Khz, 48Khz,  96Khz
  • Accepted audio format: linear PCM, 16, 20 or 24 bits per sample

Audio outputs:

  • All RCA connectors are gold-plated
  • Volume control is provided for all outputs
  • Two dedicated linear power regulators for DAC and line-out stages
  • Dedicated linear power regulators for Tube stage
  • Analog RCA outputs signal-to-noise ratio: 107dB
  • Tube pre-out outputs signal-to-noise ration: >100dB
  • Analog RCA and Tube pre-out outputs impedance: 5K ohms
  • Total harmonic distortion: less than 0.001% (RCA outputs), less than 0.1% (Tube pre-out outputs)
  • Maximum output power: 1000mW x 2 (32 ohms), 500mW x 2 (300 ohms), 300mW x 2 (600 ohms)

Headphone outputs:

  • Standard 1/4″ jack
  • Minimum headphone impedance: 16 ohms
  • Maximum headphone impedance: 600 ohms
  • Headphone output power: 300mW ~ 1000mW

Power:

  • R-core Linear 110/220 manual switch

Physical:

  • Dimensions: 10″W x 2.1″H x 6.5″D (260mm x 55mm x 167mm)
  • Finish: brushed aluminum in black color
5-foot gold plated RCA audio cable

5-foot Toslink/Optical Cable

5-foot gold plated headphone jack to RCA cable

1/8″ (3.5mm) to 1/4″ (6.5mm) gold plated headphone jack converter

  • From $209 only
